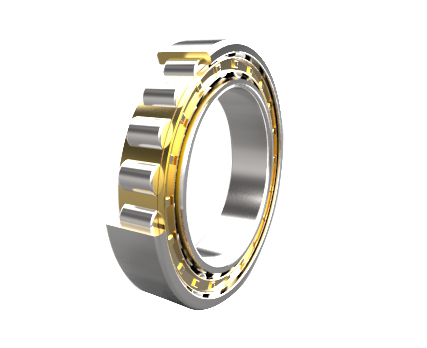

DAC | NJ1030 is a Type of Pillow Block Bearing
In DAC, nj1030 is a type of pillow block bearing.
As the rollers and raceway are in linear contact, the bearing's radial load capacity is large, and the rollers are guided by the shoulder of the inner or outer ring, so the bearing is structurally suitable for high-speed rotation.
Here are more details of nj1030:

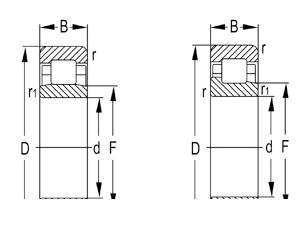

Designation : | NJ1030 |
Principal Dimensions(mm) |
|
d: | 150 |
D: | 225 |
B: | 35 |
rs min : | 2.1 |
rs1min : | 1.5 |
Basic Load Ratings(KN) |
|
Dynamic(Cr) : | 202 |
Static(Cor) : | 294 |
Limited Speed(rpm) |
|
Grease : | 3000 |
Oil : | 3500 |
Weight |
|
(kg) : | 4.77 |
Welcome to contact DAC to purchase your products!
